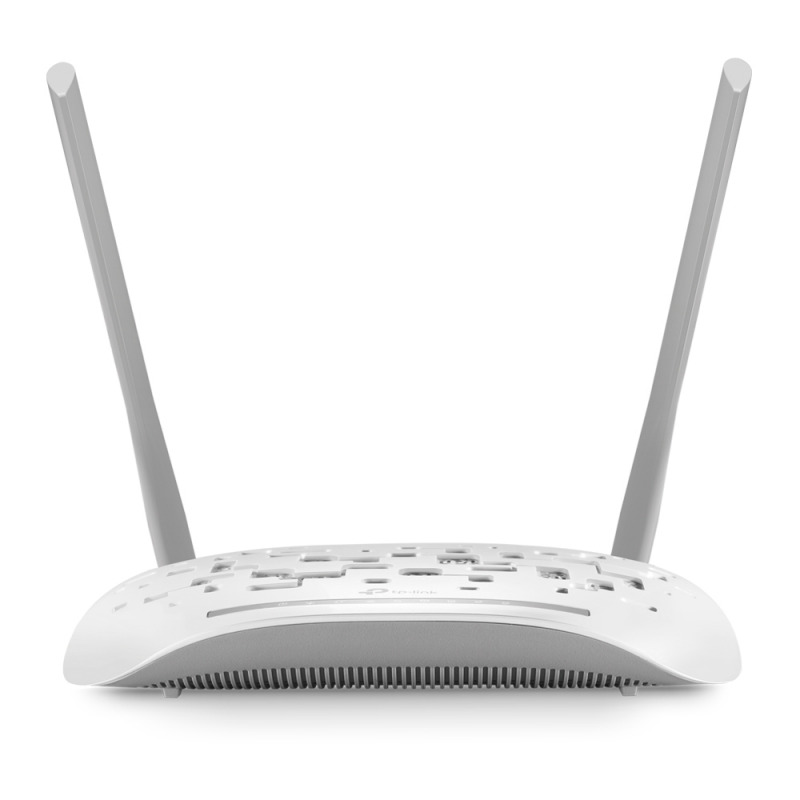

TP-Link TD-W8961N | 300Mbps Wireless N ADSL2+ Modem Router

Description

• All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Easy Setup Assistant with multi-language support provides quick & hassle-free installation
• Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button




  colour

  • White

  Hardware Features

  Interface	3 10/100Mbps RJ45 LAN Ports 1 10/100Mbps RJ45 LAN/WAN Port 1 RJ11 Port
  Button	1 WPS Button 1 Reset Button
  External Power Supply	9VDC/0.6A
  IEEE Standards	IEEE 802.3, 802.3u
  ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1
  ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
  ADSL2+ Standards	ITU-T G.992.5
  Dimensions ( W x D x H )	7.1 * 5.1 * 1.4 in. (181.6 * 129.7 * 36.2 mm )
  Antenna Type	Omni directional, Fixed
  Antenna Gain	2x5dBi

  Wireless Features

  Wireless Standards	IEEE 802.11n, 802.11g, 802.11b
  Frequency	2.400-2.4835GHz
  Transmit Power	<20dBm(EIRP)
  Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

  Software Features

  Quality of Service	QoS Remarking based on IPP/ToS, DSCP and 802.1p
  Advanced Features	Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP
  Security	NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
  Management	Web Based Configuration(HTTP), Remote management, Telnet management, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
  Port Forwarding	Virtual Server, DMZ, ACL(Access Control List)
  VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
  ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC – Up to 8 PVCs

  System

  Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
