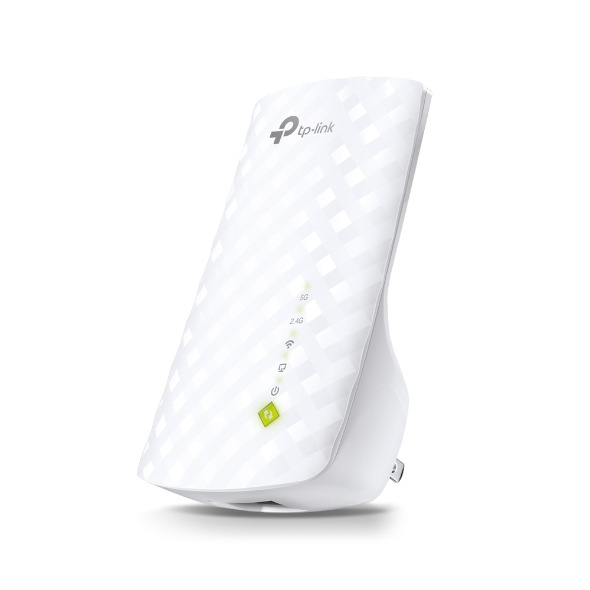

TP-Link RE200 – AC750 Mesh Wi-Fi Range Extender

Description

• Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly.
• Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.
• Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
• Dual band speeds up to 750 Mbps
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices










  colour

  • White

  Hardware Features

  Standards and Protocols	IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  Plug Type	EU, UK, US, AU
  Interface	1 x 10/100M Ethernet Port (RJ45)
  Ports	1× 10/100Mbps Ethernet Port (RJ45)
  Button	RE (Range Extender) Button, Reset Button
  Input Power	100-240V~50/60Hz
  Power Consumption	About 6.5W
  Dimensions ( W x D x H )	4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
  Antenna	3 x internal

  Wireless Features

  Wireless Standards	• IEEE 802.11a/n/ac 5GHz • IEEE 802.11b/g/n 2.4GHz
  Frequency	2.4GHz & 5GHz
  Signal Rate	5GHz:Up to 433Mbps 2.4GHz:Up to 300Mpbs
  Working Modes	Range Extender/Access Point
  Reception Sensitivity	2.4G: 270M: -70dBm@10% PER 130M: -70dBm@10% PER 108M: -73dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -94dBm@8% PER 5G: 390M: -60dBm@10% PER 29.3M: -83dBm@10% PER 180M: -64dBm@10% PER 13.5M: -87dBm@10% PER 78M: -68dBm@10% PER 6.5M: -90dBm@10% PER 54M: -75dBm@10% PER 6M：-90dBm@10% PER
  Transmit Power	< 20 dBm (EIRP)
  Wireless Modes	Range Extender/Access Point
  Wireless Functions	WMM (Wi-Fi Multimedia) Wireless Statistic Domain Login Function
  Wireless Security	64/128/152-bit WEP WPA-PSK / WPA2-PSK
  Transmission Power	< 20 dBm (EIRP)
  Mesh Technology	EasyMesh

  Others

  Certification	CE, FCC, RoHS
  Package Contents	AC750 Wi-Fi Range Extender RE200 Quick Installation Guide
  System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
  Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
