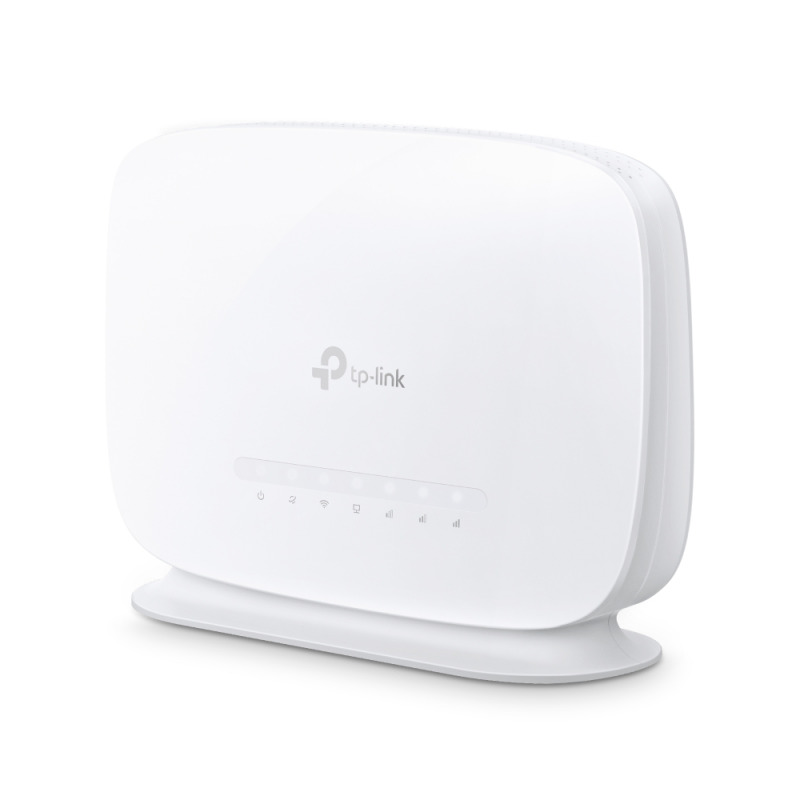

Tp-Link Archer MR505 | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Description

• Supports 4G+ Cat6 with download speeds up to 300 Mbps for fast, reliable internet anywhere.
• Insert SIM and go – no configuration required, tested for compatibility in over 100 countries.
• Features MU-MIMO technology for better Wi-Fi efficiency and simultaneous data streaming.
• EasyMesh-compatible, allowing seamless expansion into a whole-home mesh Wi-Fi system.
• Delivers strong, stable signal to all your connected devices.
• Includes full Gigabit ports for high-speed wired connections – ideal for gaming and IPTV.
• Wi-Fi Router Mode: use Ethernet as a backup if 4G isn’t available.
• Quick setup and control via the TP-Link Tether app.









  colour

  • White

  Hardware Features

  Interface	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
  Power Supply	12V/1.5A
  Dimensions ( W x D x H )	212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)
  Antenna	2 Detachable External LTE Antennas

  Wireless Features

  Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
  Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
  Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
  Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
  WAN Failover	Yes
  Wireless Security	64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
  Network Type	Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)

  Software Features

  Quality of Service	Prioritizes network traffic by device
  Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
  WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
  Management	TP-Link Cloud, Local Management, Remote Management
  DHCP	Server, DHCP Client List, Address Reservation
  Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
  Dynamic DNS	TP-Link, DynDns, NO-IP
  VPN	VPN Server: PPTP VPN, OpenVPN
  Parental Controls	URL Filtering, Time Controls
  Protocols	IPv4, IPv6
  Guest Network	2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

  Others

  Certification	CE, RoHS
  Package Contents	4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide
  Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
