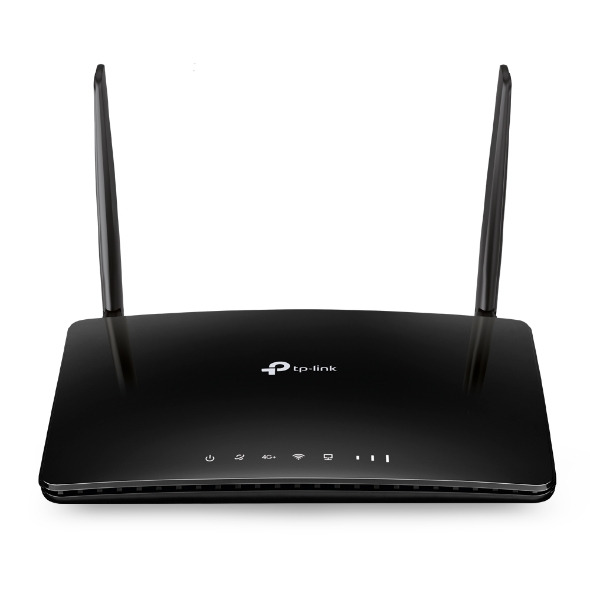

TP-Link Archer MR500 | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Description

• Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
• Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
• Supports TP-Link OneMesh^TM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
• Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
• Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
• Wi-Fi Router Mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
• Easy setup and management all by Tether app




  colour

  • Black

  Hardware Features

  Interface	1 × 10/100/1000 Mbps LAN/WAN Port 3 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot
  Dimensions ( W x D x H )	202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)
  Antenna	2 Detachable External LTE Antennas

  WIRELESS FEATURES
  Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
  Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
  Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
  Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
  WAN Failover	Yes
  Wireless Security	64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise
  Network Type	Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)

  Software Features

  Quality of Service	Prioritizes network traffic by device
  Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
  WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
  Management	TP-Link Cloud, Local Management, Remote Management
  DHCP	Server, DHCP Client List, Address Reservation
  Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
  Dynamic DNS	TP-Link, DynDns, NO-IP
  VPN	VPN Server: PPTP VPN, OpenVPN
  Parental Controls	URL Filtering, Time Controls
  Protocols	IPv4, IPv6
  Guest Network	2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

  Others

  Certification	CE, RoHS
  Package Contents	4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR500 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
  Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
