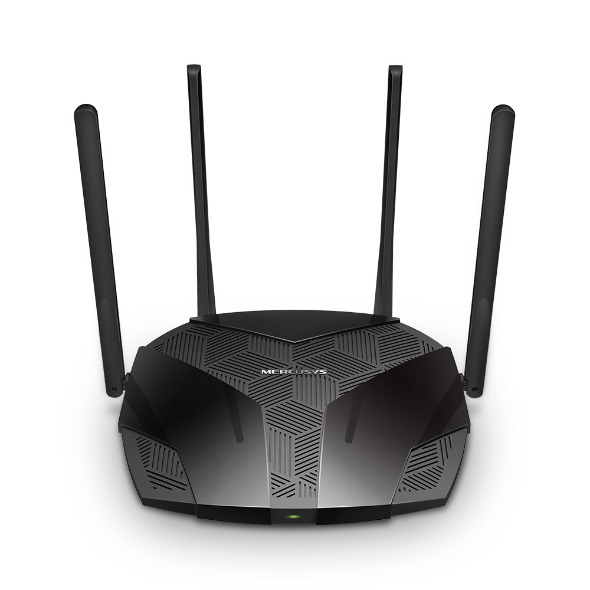

Mercusys MR80X | AX3000 Dual-Band Wi-Fi 6 Router

Description

• Optimal Wi-Fi 6 Speeds: Achieves speeds up to 3 Gbps for enhanced browsing, streaming, and downloading.
• MU-MIMO and OFDMA Support: Efficiently handles network congestion and increases throughput.
• Enhanced Wi-Fi Coverage: Features four multi-directional high-gain antennas and Beamforming technology for stable connections and strong signals across your home.
• Advanced Security Features: Includes the latest WPA3 for improved Wi-Fi security.
• Gigabit Wired Connections: Utilizes full internet access for high-speed data transfer.
• Eco-Friendly Power Saving: Incorporates Target Wake Time to reduce power consumption on devices.
• Minimal Wi-Fi Interference: Uses BSS coloring to decrease interference from neighboring signals.
• Smart Connect: Automatically assigns devices to the best available band for optimal performance.



  colour

  • Black

  Hardware Features

  Dimensions
  8.2 × 6.8 × 1.6 in
  (208.8 × 171.6 × 41.7 mm)

  Interfaces
  1× Gigabit WAN Port + 3× Gigabit LAN Ports

  Button
  Reset/WPS Button

  Antenna Type
  4× 5 dBi Fixed Omni-Directional Antennas



  Wireless Features

  Wireless Standards
  Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

  WiFi Speeds
  2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

  Reception Sensitivity
  11g 6Mbps: -97dBm
  11g 54Mbps: -79dBm
  11n HT40 MCS7:-74dBm
  11n HT20 MCS7:-77dBm
  11a 6Mbps: -97dBm
  11a 54Mbps: -79dBm
  11ac VHT20 MCS8:-75dBm
  11ac VHT40 MCS9:-71dBm
  11ac VHT80 MCS9:-67dBm
  11ax HE20 MCS11:-67dBm
  11ax HE40 MCS11:-64dBm
  11ax HE80 MCS11:-61dBm

  Transmission Power
  2.4 GHz < 20dBm (EIRP)
  5 GHz < 23dBm (band1、 band2)
  5 GHz < 30dBm (band3)

  Wireless Security
  WPA / WPA2-Personal, WPA2 / WPA3-Personal
  WPA2-Enterprise, WPA/WPA2-Enterprise

  Wireless Functions
  Enable/Disable Wireless Radio, WMM



  Software Features

  WAN Type
  Dynamic IP/Static IP/PPPoE/L2TP/PPTP

  Management
  Access Control
  Local Management
  Remote Management

  DHCP
  Server, DHCP Client List

  NAT Forwarding
  Port Forwarding, Port Triggering, UPnP, DMZ

  Firewall Security
  SPI Firewall, IP and MAC Address Binding

  Guest Network
  2.4 GHz Guest Network, 5 GHz Guest Network

  VPN Server
  OpenVPN/PPTP/L2TP/IPSec VPN Server and Clients
