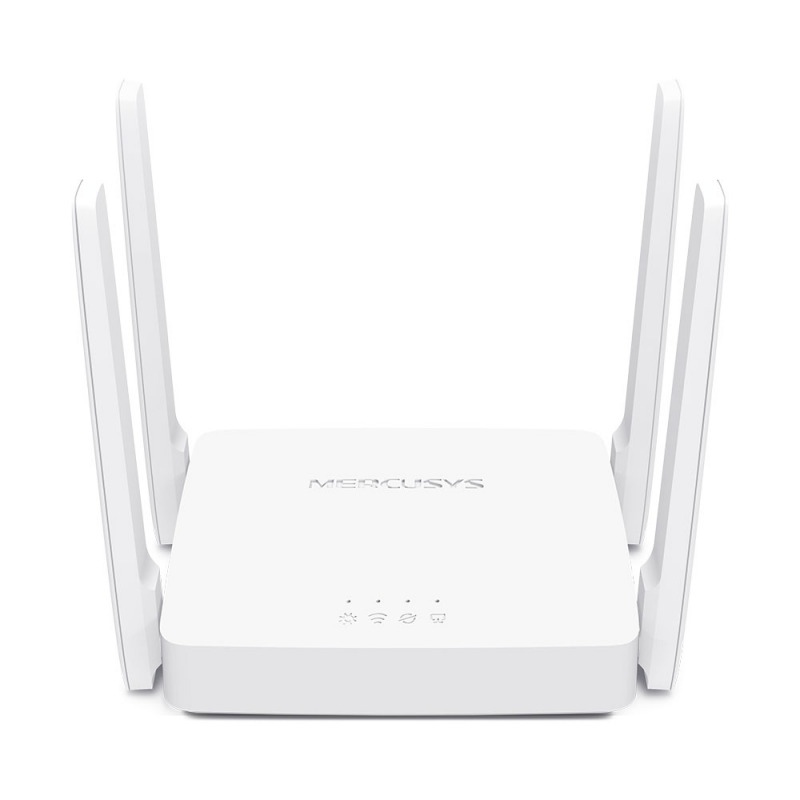

Mercusys AC10 | AC1200 Wireless Dual Band Router

Description

• High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
• 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home
• Easy Installation – Set up in minutes guided by the MERCUSYS app or an intuitive web UI
• Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use
• Multi-Mode — Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios
• IPTV and IPv6 Supported


  colour

  • White

  Hardware Features

  Dimensions

  4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

  Interfaces

  1× 10/100 Mbps WAN Port
  2× 10/100 Mbps LAN Ports

  Button

  Reset/WPS Button

  External Power Supply

  9V/0.85A

  Antenna Type

  4× 5 dBi Fixed Omni-Directional Antennas

  Wireless Features

  Wireless Standards

  IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

  Frequency

  2.4 GHz, 5 GHz

  WiFi Speeds

  Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz

  Reception Sensitivity

  11g 6Mbps: -96dBm
  11g 54Mbps: -78dBm
  11n HT40 MCS7: -74dBm
  11n HT20 MCS7: -71dBm
  11a 6Mbps: -97dBm
  11a 54Mbps: -79dBm
  11ac VHT20 MCS8: -74dBm
  11ac VHT40 MCS9: -70dBm
  11ac VHT80 MCS9: -65dBm

  Transmission Power

  2.4 GHz < 20dBm (EIRP)
  5 GHz < 23dBm (EIRP)

  Wireless Security

  WEP
  WPA / WPA2-Personal
  WPA2 / WPA3-Personal

  Wireless Functions

  Enable/Disable Wireless Radio, WMM

  Software Features

  Operation Mode

  Router Mode, Access Point Mode, Range Extender Mode

  WAN Type

  Dynamic IP/Static IP/PPPoE/L2TP/PPTP

  Management

  Access Control, Local Management, Remote Management


  NAT Forwarding

  Port Forwarding, Port Triggering, UPnP, DMZ

  Firewall Security

  SPI Firewall, IP and MAC Address Binding

  Guest Network

  2.4 GHz Guest Network, 5 GHz Guest Network

  DHCP

  Server, DHCP Client List

  In The Box

  AC1200 Wireless Dual Band Router AC10
  Power Adapter
  Quick Installation Guide
  RJ45 Ethernet Cable
